livingbetter

ALUMINIUM:W450

open, tilt & turn
EXCELLENT ALUMINIUM EFFICIENCY
brochure W450
brochure W450HS
E450

Standard double glass (low-E 5mm/16mm-Argon/4mm window. Heat insulation=1.4W/m2K. Triple glass available

Available with concealed hinges

High sound insulaion 43db, High water tightness, 8A (450P/50min)

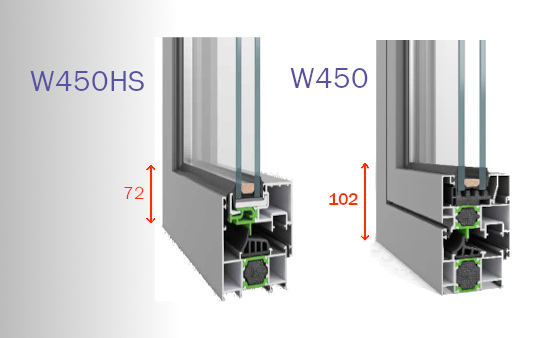

Available with hidden sash, W450HS, an aesthetic version, with the appearance of a fixed window

Any combination: opening at vertical axis, tilt and turn, opening at top or bottom horizontal axes, doors, parallel sliding

Optional concealed hinges: : Clear, high quality aesthetic appearance

Superior security: can have several locks in the perimeter

All aluminum parts are electrostatically painted in the RAL color of your choice

Guarantee: Livingbetter windows come with 5 years warranty (conditions apply)

WINDOW DATA

Thermal insulation: Uf = 1.6W/m2K (H5)
Sound Insulation: 43db (T-4)
Water tightness: EN1220 8A 450Pa = W-4(350Pa)
Air permeability: EN 12207 class 4 600Pa 0.6m3hr/m2 >>A-4
Resistance to wind load: EN12210 class C5/B5 3000Pa (safety test)=S-6

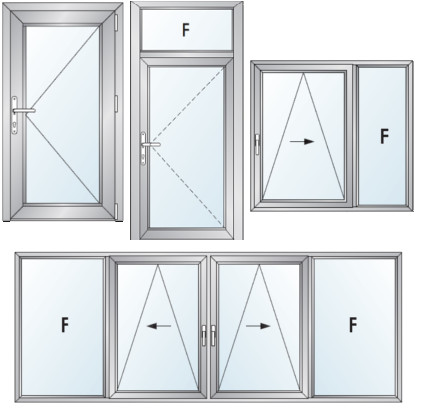

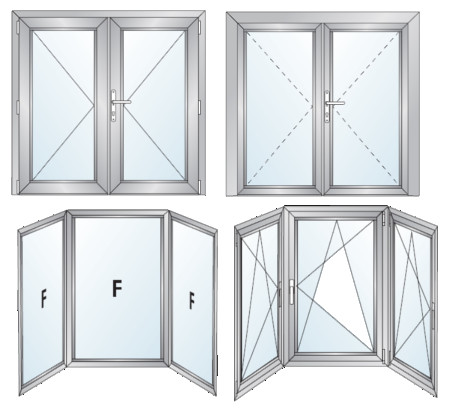

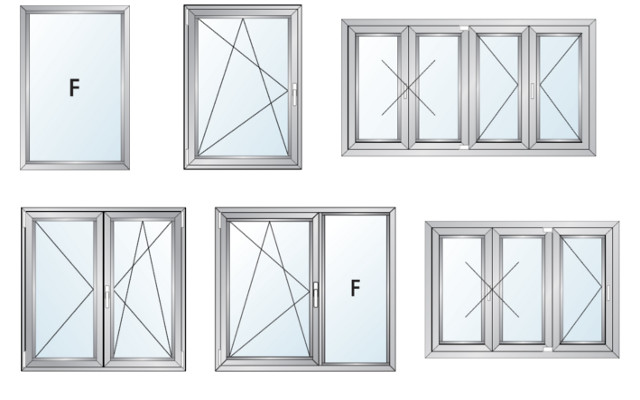

COMBINATIONS

E45 combinations
e45 combinations e45 combinations

COLORS

aluminium window colors
aluminum window colors aluminum window colors aluminum window colors aluminum window colors

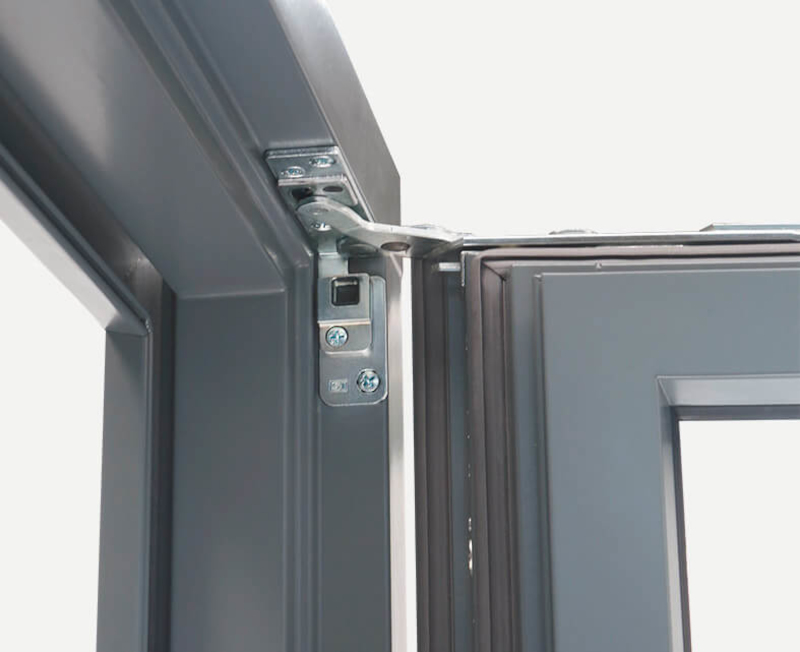

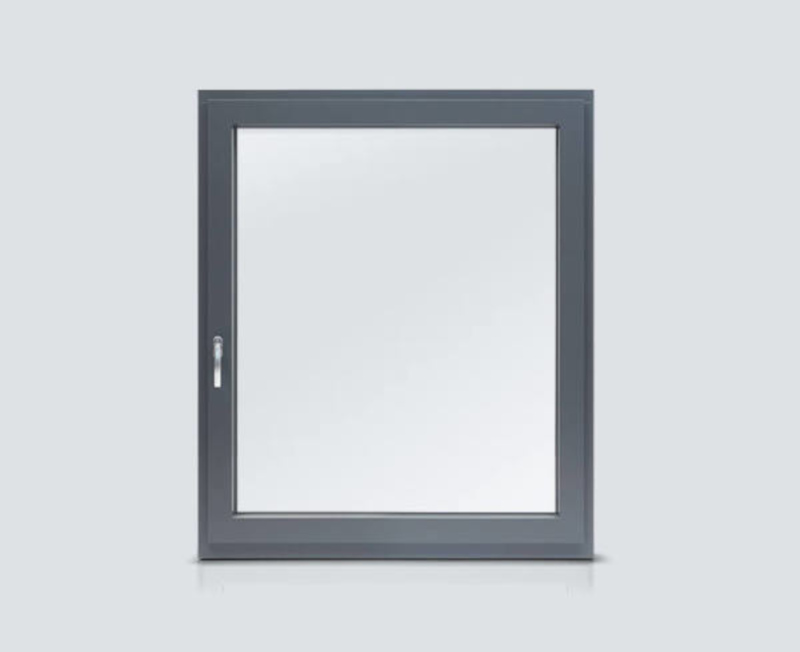

CONCEALED HINGES

concealed hinges
concealed hinges concealed hinges

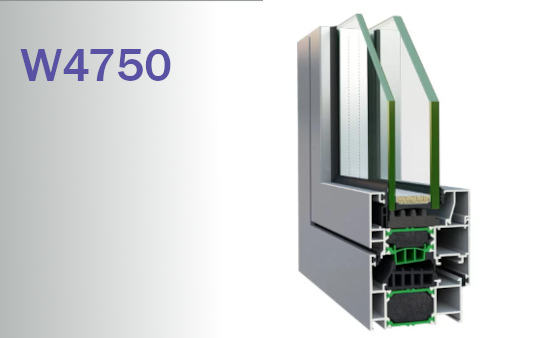

ALUMINUM:W4750

open, tilt & turn
BEAUTIFUL AND ENERGY SAVER
brochure
w4750

Standard double glass (low-E 5mm/16mm-Argon/4mm window. Heat insulation=1.1W/m2K. Triple glass available

Available with concealed hinges

High sound insulation of 39db and water tightness, 8A (450P/50min)

Any combination: opening at vertical axis, tilt and turn, opening at top or bottom horizontal axes, doors, parallel sliding

Optional concealed hinges: : Clear, high quality aesthetic appearance

Superior security: can have several locks in the perimeter

All aluminum parts are electrostatically painted in the RAL color of your choice

Guarantee: Livingbetter windows come with 5 years warranty (conditions apply)

WINDOW DATA

Thermal insulation: Uf = 1.2W/m2K (H5)
Sound Insulation: 39db (T-4)
Water tightness: E1200 EN12208 1200Pa >>W-5(500Pa)
Air permeability: EN 12207 class 4 600Pa 0.6m3hr/m2 >>A-4
Resistance to wind load: EN12210 class C5/B5 3000Pa (safety test)=S-6

COMBINATIONS

W4900 combinations

COLORS

aluminium window colors
aluminum window colors aluminum window colors aluminum window colors aluminum window colors

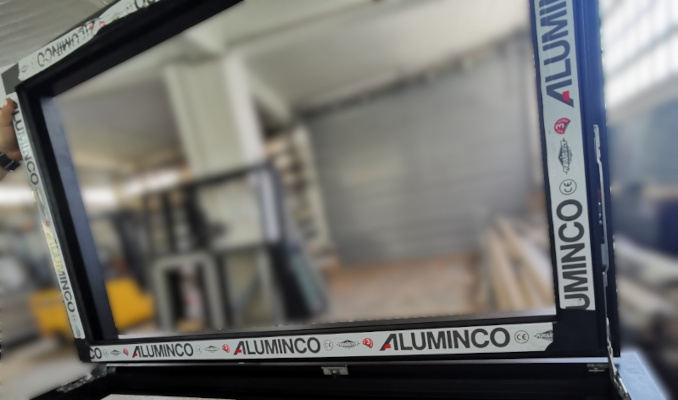

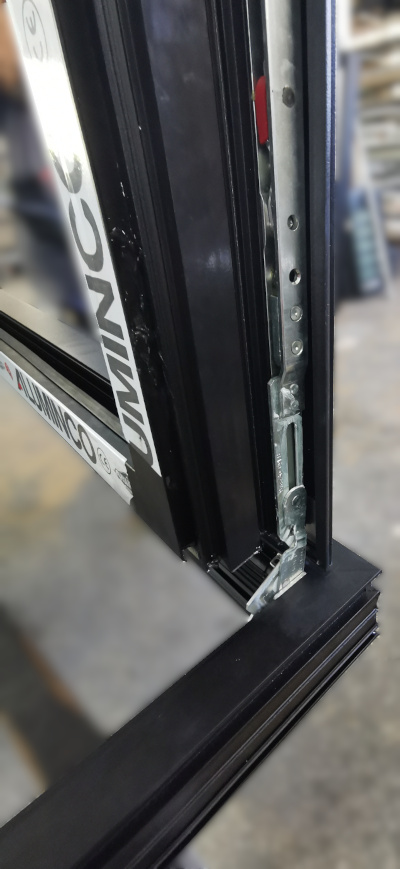

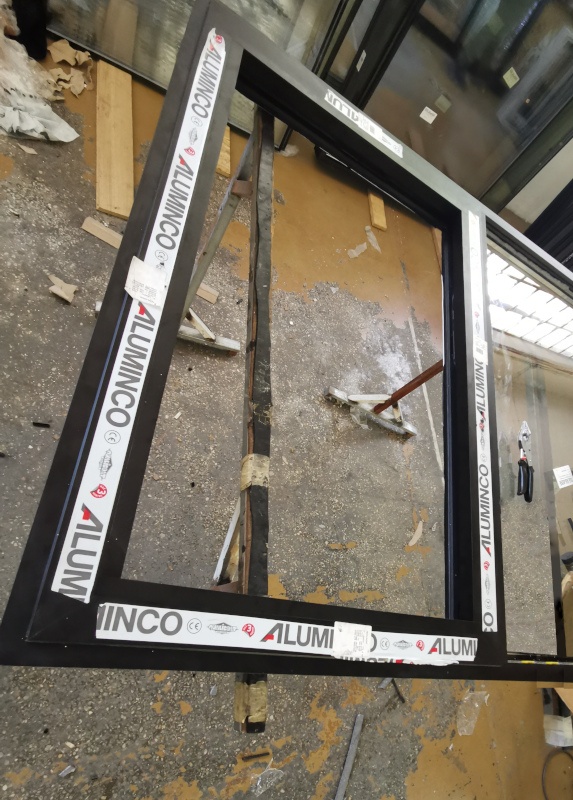

CONCEALED HINGES

concealed hinges
concealed hinges concealed hinges concealed hinges concealed hinges concealed hinges

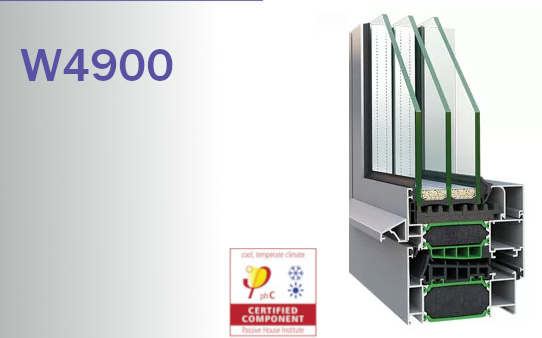

PASSIVE HOUSE ALUMINUM:W4900

open, tilt & turn
SUperb ALUMINUM WINDOW PERFORMANCE
brochure
w4900

Triple glass (Low-E 4/18/4/18/Low-E 4mm typical) window

Passive house certification standard for cool and temperate climates, Japan

Unique thermal insulation for aluminum up to Uw= 0.78Wm2/K,

Selection of profiles

Superior safety with muliple locking points

Superior acoustic insulation up to 50db sound insulation

Guaranteed for 5 years

WINDOW DATA

Passive House Certificate

 Sound Insulation: 50db (T-4)

Air Permeability: EN12207 Class C4 600Pa 0.6m3/hr/m2/
Water tightness: Class 6A EN12208 250Pa/40min
Wind Resistance: EN12210 Class C4 Safety test 2400Pa

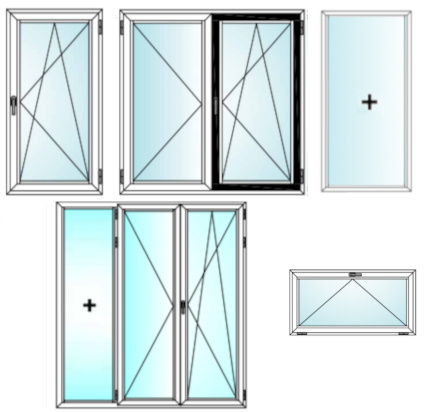

COMBINATIONS

W4900 combinations

COLORS

aluminium window colors
aluminum window colors aluminum window colors aluminum window colors aluminum window colors

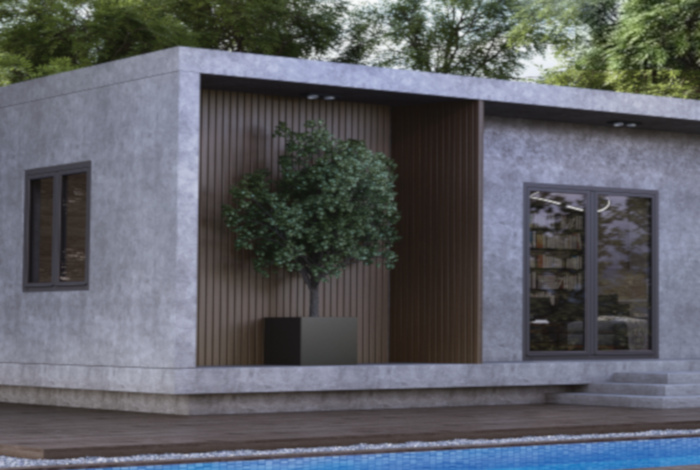

INSTALLATIONS

w4900 installations
